Air Break Switch

• Equipment Type
• Level Switch

• Accuracy
• 1% F.S.

• Application Media
• Liquids (Water, Oil, Chemicals)

• Axis Type
• Vertical/Horizontal depending on mounting

• Capacity
• Suited for various tank sizes

• Color
• Metallic Silver

• Connecting Type
• 2-wire, 3-wire

• Connectivity Type
• Wired

• Connector
• Wire leads

• Current Range
• 24V / 110V / 230V AC/DC Volt (V)

• Cut Size
• Suitable as per flange/boss opening

• Diameter
• Float diameter approx 60 mm

• Dimension (L*W*H)
• Approx. 220 mm (L) x 80 mm (W) x 100 mm (H)

• Frequency
• 50/60 Hz

• Housing Material
• Stainless Steel

• Humidity %
• Up to 95% RH, non-condensing

• Input
• Electrical connection (wires)

• Length
• Customizable as per application

• Load Capacity
• Up to 100 VA

• Material
• Stainless Steel / PVC / PP

• Measurement Range
• Suitable for tanks up to 5 m

• Measuring Units
• Level Switch (On/Off)

• Model

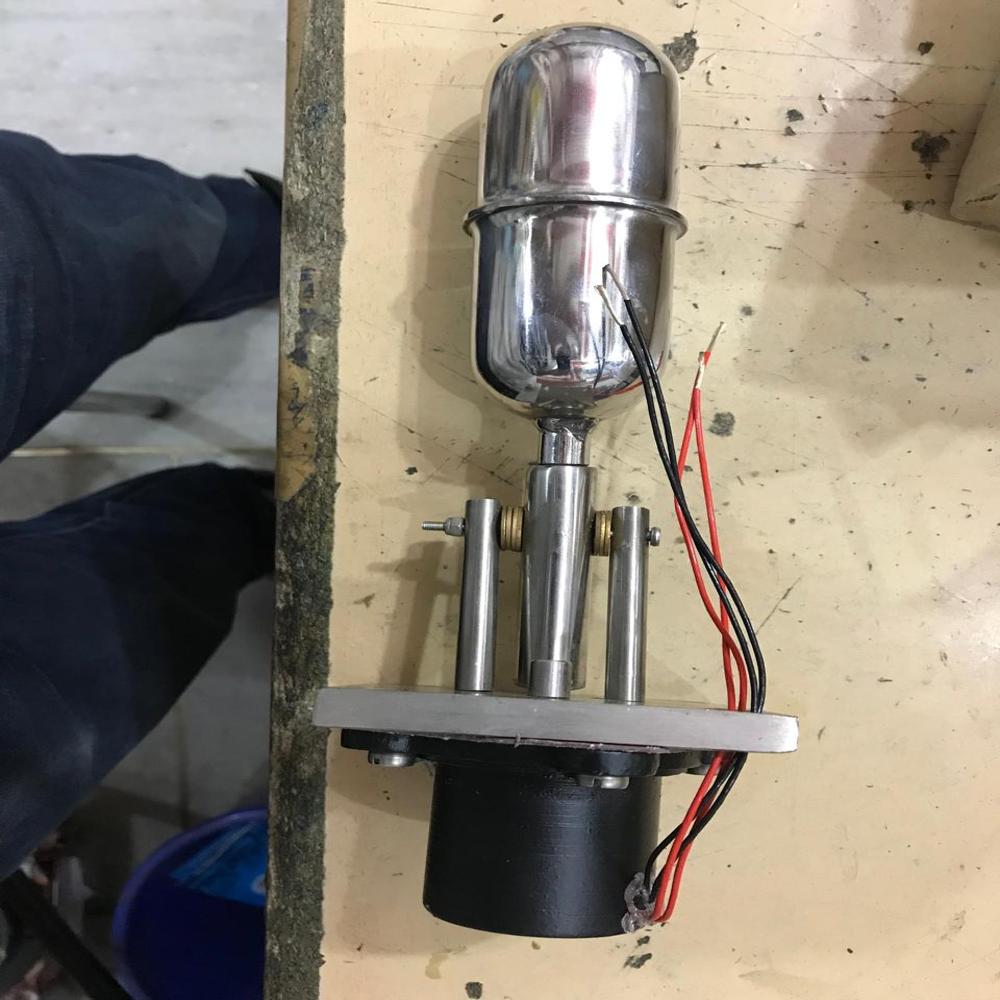

• Magnetic Float Level Switch

• Mounting
• Top/Boss/Flange Mounted

• Operating Temperature
• -20C to +80C

• Output
• SPST/DPDT relay contact

• Power Consumption
• Less than 3 VA

• Power Supply
• 230V AC / 24V DC

• Pressure Range
• Up to 10 bar

• Process Connection
• Flanged/Boss Threaded (as per requirement)

• Product Type
• Float / Capacitive / Conductivity (as per requirement)

• Protection
• IP65

• Range
• Customizable as per tank height

• Response Time
• < 1 sec

• Sensitivity
• Standard (factory calibrated)

• Sensor Type
• Magnetic Float Switch

• Signal Type
• ON/OFF

• Stability
• High stability, vibration-resistant

• Storage Temperature
• -30C to +85C

• Temperature Range
• -20C to +80C

• Usage
• Water Tanks & Storage Systems Chemical Industry Oil & Gas Industry Sewage & Wastewater Plants Boilers & Process Tanks

• Accuracy
• High

• Application Media
• Industrial electrical control

• Capacity
• Up to 15A (as per model)

• Connectivity Type
• Wired

• Current Range
• Up to 15A

• Diameter
• Standard (as per model)

• Display Type
• Other, LED indicator

• Frequency
• 50/60 Hz

• Humidity %
• Up to 95% RH non-condensing

• Material
• High grade plastic and metal

• Measurement Range
• Depends on application

• Power Consumption
• Low

• Power Supply
• 230V AC

• Pressure Range
• Atmospheric

• Protection
• IP65

• Range
• Adjustable

• Resolution
• Sensitive switching

• Sensor Type
• Float type

• Temperature Range
• -10C to +60C
